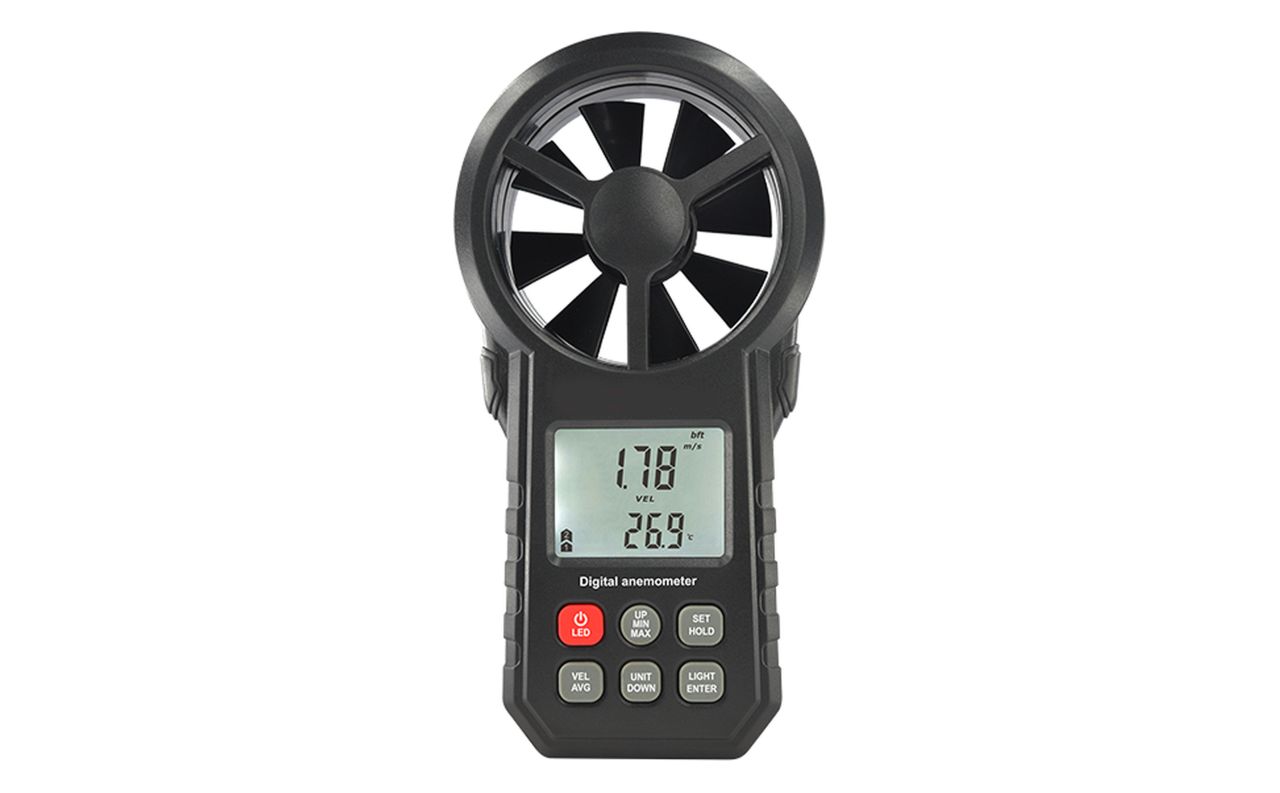

HANDHELD ANEMOMETERS FOR AIR VELOCITY AND TEMPERATURE
The AMF115A and AMF115B are handheld digital anemometers for measuring air velocity and air temperature. Both models provide multiple wind-speed units, temperature conversion between Celsius and Fahrenheit, and common reading modes for field measurements. The AMF115B adds air-volume measurement, computer communication, Bluetooth connectivity, and data-recording features.
The impeller sits at the top of the instrument, so the vane can be held directly in the air stream while the readings are taken. The LCD and the keypad are on the front face, and both models run on a single 9 V battery.
1. Air velocity — Measurement up to 30 m/s with selectable units: m/s, ft/min, knots, km/h, and mph
2. Air temperature — Measurement from −10 °C to 45 °C, with °C/°F selection
3. Reading modes — Real-time, maximum, minimum, and average wind-speed readings, plus data hold
4. Display and power — Beaufort wind scale, wind-chill indicator, low-battery indicator, display lighting, and automatic shutdown after 10 minutes without button operation
5. AMF115B additions — Air-volume measurement, USB communication with computer software, Bluetooth connection to a mobile app, and recording, review, and export functions
The impeller is mounted in the top housing, and the LCD below it shows the reading with the active unit; the keypad selects the unit, holds a reading, and switches the display lighting on.

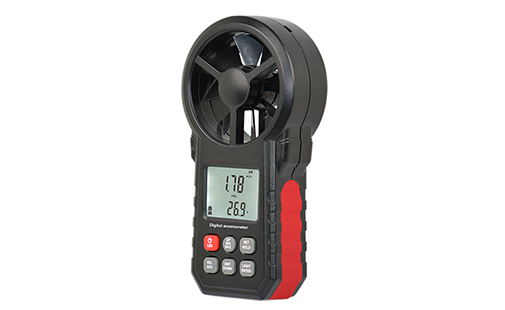

Impeller in the top housing |

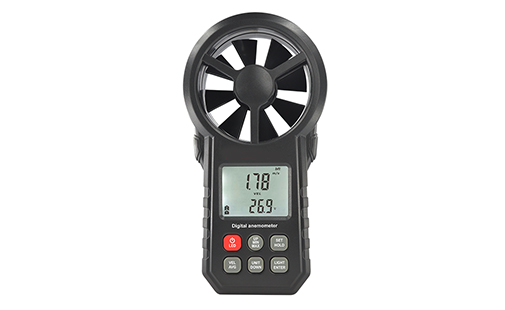

LCD readout with unit and temperature |
| Parameter | AMF115A | AMF115B |
| Measured parameters | Air velocity and air temperature | Air velocity, air temperature, and air volume |
| Air-volume measurement | Not available | Available; CMM and CFM units; inlet area can be set |
| Readout and recording | Real-time, maximum, minimum, average; data hold | Adds 2/3 maximum wind-speed value, record/read/delete functions, and computer/mobile data handling |
| Computer / mobile connection | Not specified | USB communication with computer application; Bluetooth communication with mobile app |
| Weight (including battery) | 184 g | 186 g |
| Air velocity | Range: 0–30 m/s; 0–5,860 ft/min; 0–55 knots; 0–90 km/h; 0–65 mph. Resolution: 0.01 m/s; 1.968 ft/min; 0.019 knots; 0.036 km/h; 0.022 mph. Threshold: 0.3 m/s; 60 ft/min; 0.6 knots; 1 km/h; 0.7 mph. Accuracy: ±5% ± 0.1 m/s; ±5% ± 20 ft/min; ±5% ± 0.2 knots; ±5% ± 0.4 km/h; ±5% ± 0.2 mph |
| Air temperature | Range: −10 to 45 °C (14 to 113 °F). Resolution: 0.1 °C; 0.2 °F. Accuracy: ±2 °C; ±3.6 °F |
| Battery and current | 9 V battery (6F22); about 6 mA, about 16 mA with Bluetooth on (AMF115B) |
| Operating conditions | −10 to 45 °C (14 to 113 °F); less than 90% RH |
| Storage temperature | −10 to 50 °C (14 to 122 °F) |
| Dimensions | 165 × 85 × 39 mm |
| Temperature sensor | Negative temperature coefficient (NTC) resistance sensor |
1. Ventilation checks — Spot checks of air movement and temperature in ventilation work
2. HVAC work — HVAC balancing and general field-measurement tasks
3. Maintenance — Maintenance checks where a handheld instrument is easier to place than a fixed sensor
4. Data capture — Workflows that also require air-volume readings or digital data capture (AMF115B)
