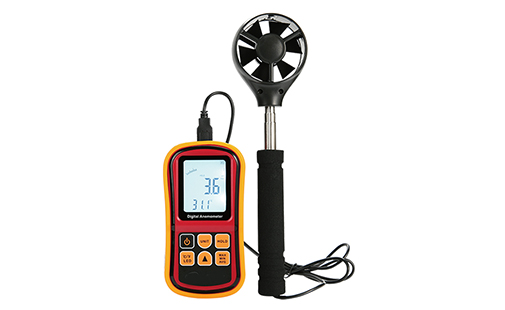

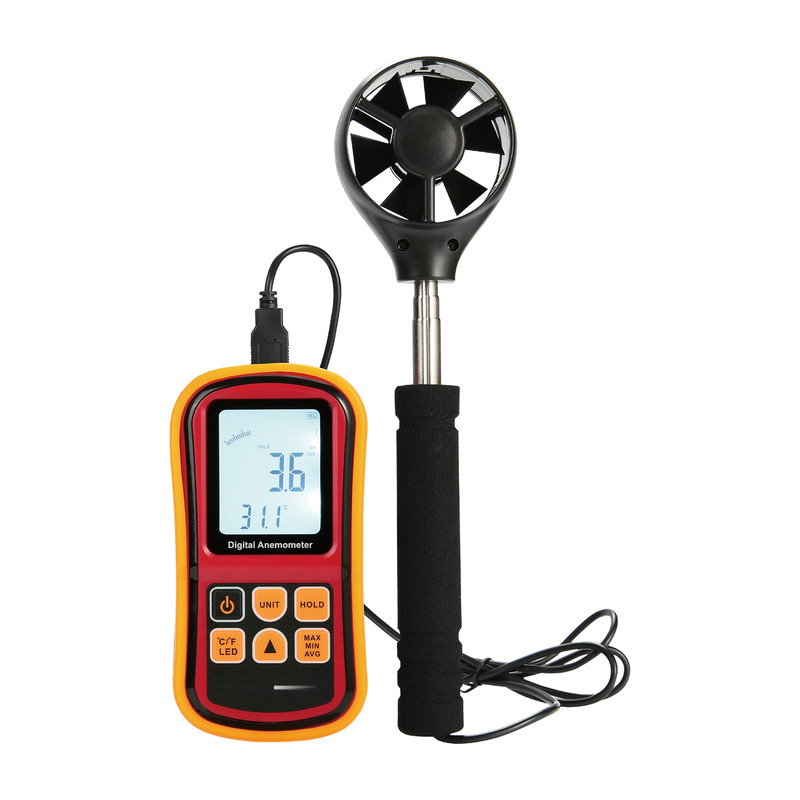

The AMF002+ Digital Anemometer is a handheld vane anemometer built for air velocity and temperature measurement on site. A six-blade vane probe on a retractable stainless steel rod reaches ceiling diffusers, duct mouths and extraction hoods that a compact handheld meter cannot easily get to, while the instrument body keeps the large backlit LCD and the keypad within reach of one hand.
Air velocity is displayed in five units — m/s, km/h, ft/min, knots and mph — with a top range of 45 m/s and a minimum resolution of 0.01 m/s. Temperature is displayed in °C or °F, and the meter records Max, Min, Average and Current values together with a Beaufort scale indication and a wind chill alert. Data Hold freezes a reading between measurements, the LCD backlight keeps the display readable in dim plant rooms, and Auto Power Off protects the batteries between site visits.

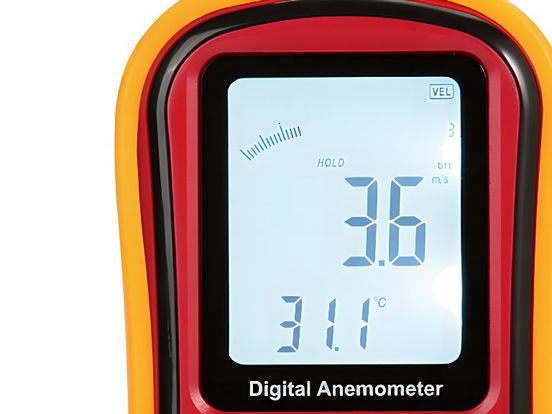

Backlit LCD with velocity, temperature and scale indication |

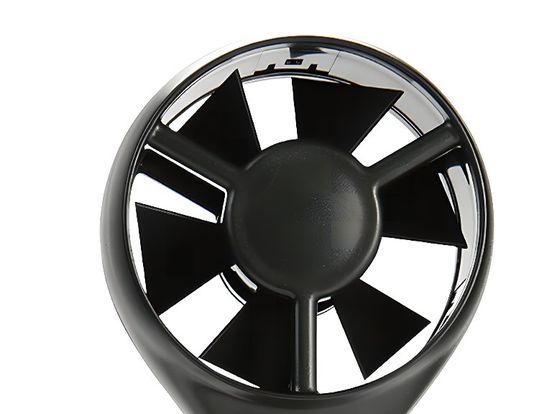

Six-blade vane probe on a retractable stainless steel rod |

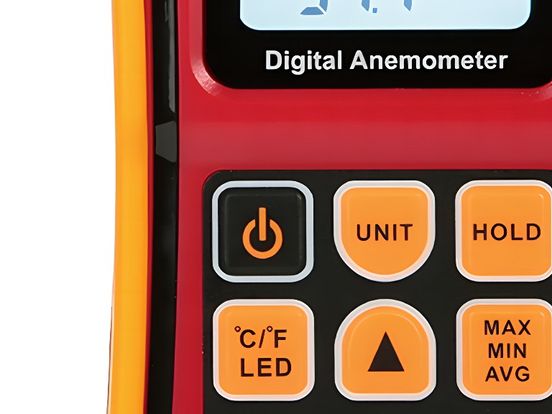

One-hand keypad: unit, hold, backlight and max/min/average |
Air velocity and temperature measurement in one handheld instrument
Max / Min / Average / Current reading
°C / °F temperature unit selection
Five air velocity units: m/s, km/h, ft/min, knots, mph
Data Hold
LCD backlight display
Manual / Auto power shut off
Beaufort scale indication
Wind chill alert
Low battery indication
Retractable drag rod
| A. Air velocity | Unit | Range | Min. resolution | Threshold | Accuracy |
|---|---|---|---|---|---|
| m/s | 0 ~ 45 | 0.01 | 0.3 | ±3% ±0.1dgts | |
| ft/min | 0 ~ 8800 | 1.9 | 60 | ±3% ±10dgts | |
| knots | 0 ~ 88 | 0.02 | 0.6 | ±3% ±0.1dgts | |
| km/h | 0 ~ 140 | 0.03 | 1 | ±3% ±0.1dgts | |
| mph | 0 ~ 100 | 0.02 | 0.7 | ±3% ±0.1dgts | |
| B. Temperature | Unit | Range | Resolution | Accuracy | |
| °C | 0 °C ~ +45 °C | 0.2 | ±2 °C | ||
| °F | 32 °F ~ 113 °F | 0.36 | ±3.6 °F | ||
| C. General | Specification | ||||
| Power supply | 3 × 1.5 V AAA batteries | ||||
| Operating temperature | 0 °C ~ +45 °C (32 °F ~ 113 °F) | ||||
| Operating humidity | 40 %RH ~ 85 %RH | ||||
| Storage temperature | −10 °C ~ +50 °C (14 °F ~ 122 °F) | ||||
| Storage humidity | 10 %RH ~ 90 %RH | ||||
Industrial ventilation and duct work |
Outdoor and rooftop wind measurement |
Laboratory and cleanroom airflow checks |

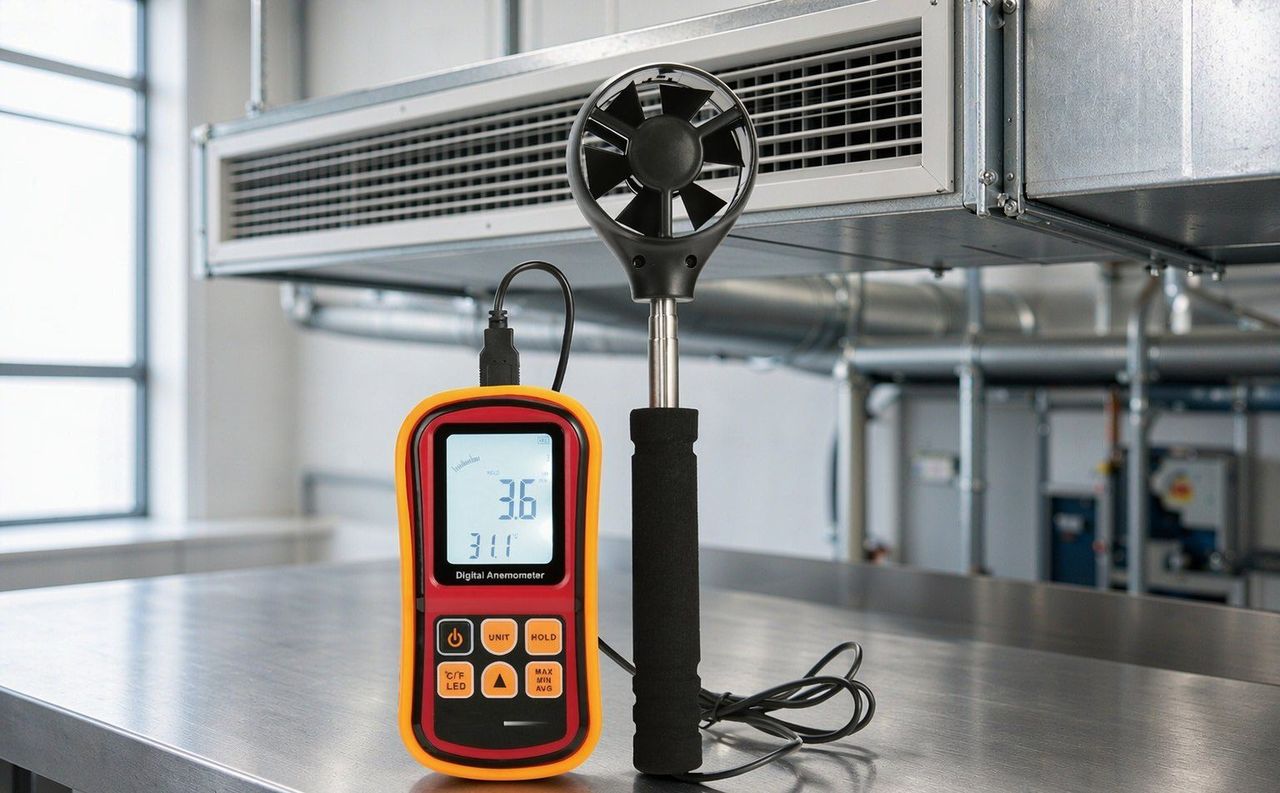

HVAC commissioning and maintenance — supply and return air velocity at ceiling diffusers, grilles and vents.

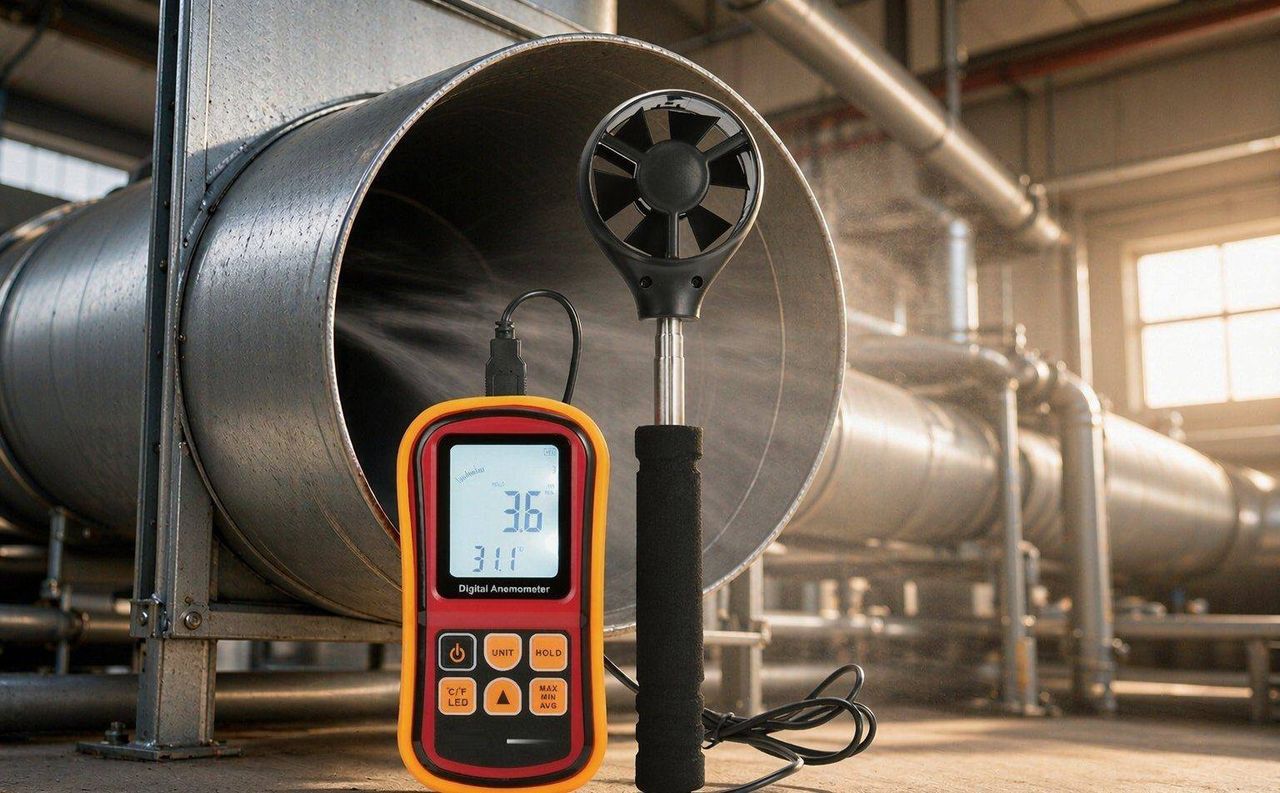

Industrial ventilation — airflow verification at duct mouths, fans, extraction hoods and drying lines.

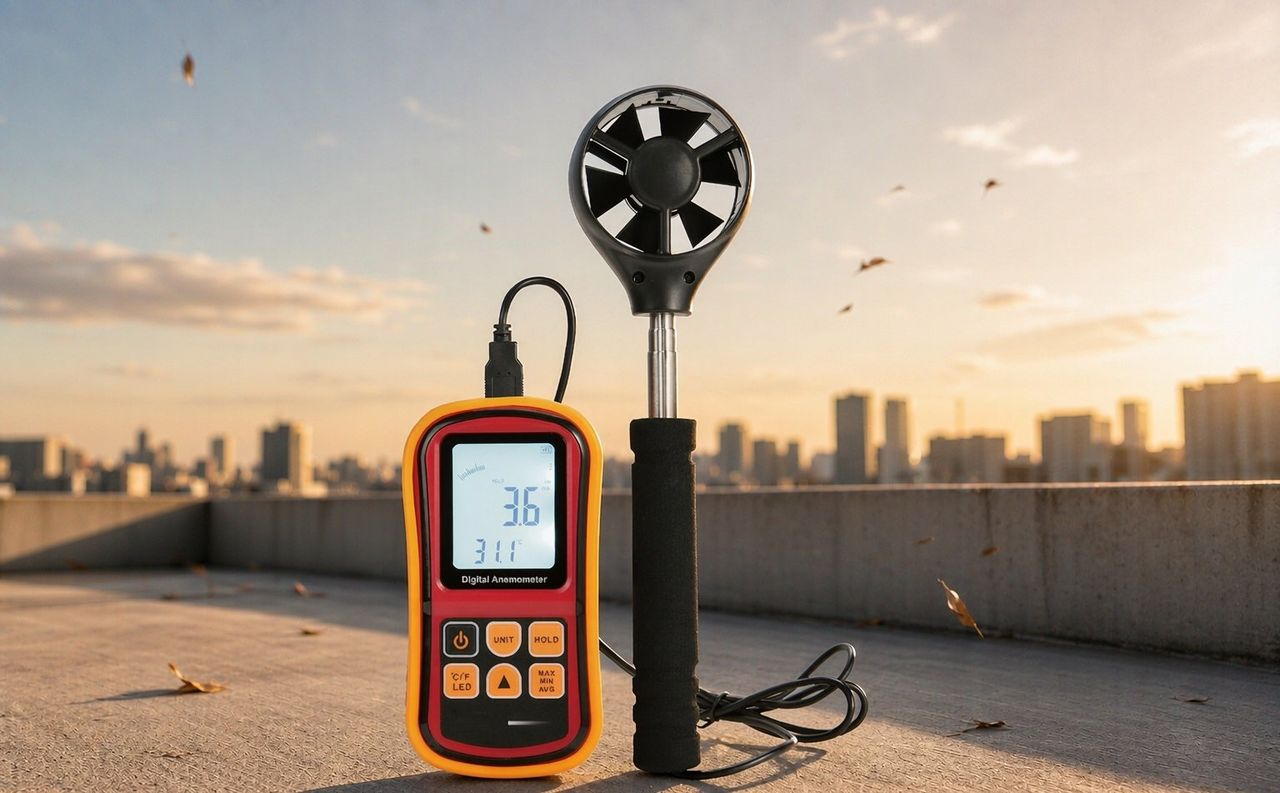

Outdoor and rooftop wind measurement — site surveys and building airflow checks with the Beaufort scale and wind chill alert.

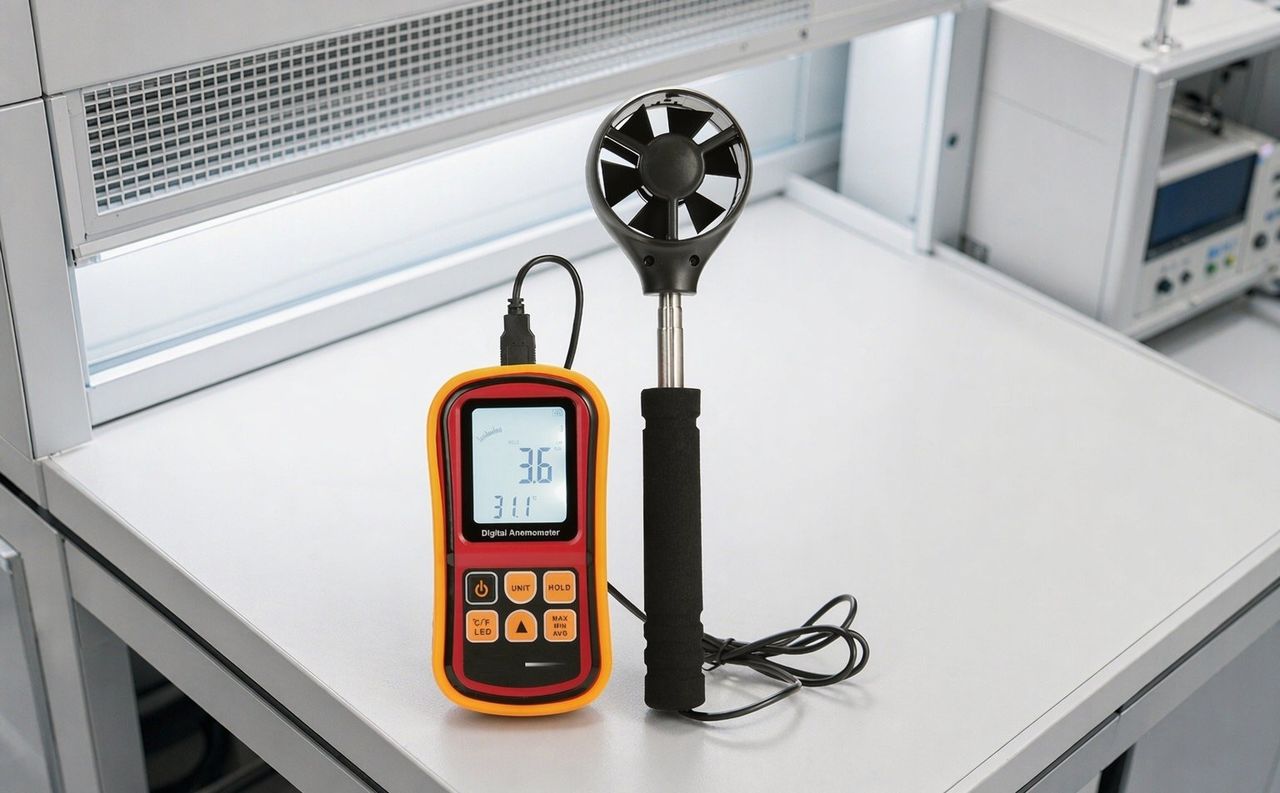

Laboratory and cleanroom airflow checks — laminar flow benches, fume hoods and filter outlets.
Supplied with 3 × 1.5 V AAA batteries, 1 wind vane handle (probe), 1 instrument, 1 yellow protective shell, 1 instruction manual, 1 PP box and 1 color box.
