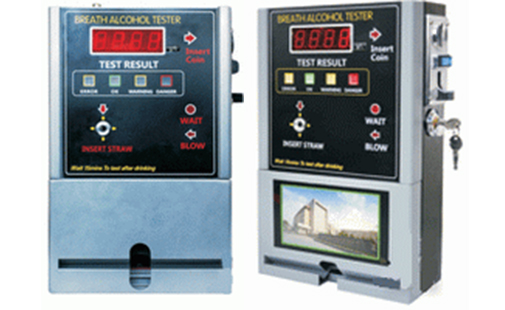

Coin Operated Breathalyzer
Keywords: coin operated breathalyzer, AMT319 breathalyzer, wall mounted breathalyzer, vending breathalyzer, fuel cell alcohol tester
Wall-mounted coin operated breathalyzer with a fuel cell sensor and AC110V/220V power for bars, hotels and night clubs.
The AMT319 is a standalone, coin operated breath alcohol tester designed for public venues. Because it works entirely on its own — no PC, no attendant and no network — a bar, hotel or night club can offer self-service alcohol testing without adding staff workload.
The instrument uses the same fuel cell sensor technology as professional handheld units, so it offers excellent sensitivity and reproducibility rather than a rough indication. A four-digit digital tube shows the result in the unit of choice, and the pre-calibrated sensor module is exchanged as a whole, which keeps maintenance simple for venue operators.
1. Fuel Cell Sensor — accuracy and reliance from a professional-grade fuel cell element rather than a semiconductor cell.
2. Pre-Calibrated Sensor Module — the whole module is swapped when service is due, so there is no on-site calibration procedure.
3. Standalone Operation — runs by itself with no computer and no attendant; suitable for unsupervised public use.
4. AC110V/220V Power — connects directly to mains power and works continuously without a battery.
5. Switchable Result Units — results can be displayed in mg/L, g/L, %BAC or ‰BAC to match local practice.
6. Coin Payment Only — a coin acceptor controls access to each test, giving a simple revenue model.
7. Wall-Mounted Body — the unit is fixed to a wall at a convenient height, which keeps the testing area clear.
8. Four-Digit Digital Tube — a large, bright display shows the reading clearly in a dim venue.
9. Version with Video Option — the AMT319V version adds a video screen that can play advertisement content.
10. Continuous Duty — designed for continuous operation in a busy venue.
| Model | AMT319 |
| Product Name | Standalone Coin Operated Breathalyzer |
| Order Numbers | AMT319 standard; AMT319V with video, can play advertisement |
| Sensor Type | Fuel cell |
| Detection Range | 0.00–0.40 %BAC; 0.00–4.00 ‰BAC; 0.00–2.00 mg/L; 0.00–4.00 g/L |
| Accuracy | ± 0.005 at 0.05 %BAC |
| Pre-Set Level | 0.05 %BAC; 0.50 ‰BAC; 0.25 mg/L; 0.50 g/L |
| Warm-Up Time | < 10 seconds |
| Testing Time | < 5 seconds |
| Display | Four-digit digital tube |
| Power | AC110V–AC220V, 50/60 Hz |
| Working Time | Continuous |
| Working Environment | 0 ℃ – 50 ℃, ≤ 95 % RH, no dews |
| Installation | Wall-mounted |
| Payment | Coins |
| Dimensions | 310 × 141 × 450 mm, about 4500 g |
1. Bars, pubs and night clubs offering self-service alcohol testing to customers.
2. Hotels and restaurants with a driving-distance customer base.
3. Factories, workshops and offices with fitness-for-duty requirements.
4. Any public venue where a coin-operated, unattended unit fits the operation.
