TDS/EC CONTROLLER WITH 4–20 mA OUTPUT
The PSC-154 is a TDS/EC controller for monitoring and controlling dissolved-solids or conductivity levels in commercial water systems. It combines a bright LED display, on-screen temperature readout, user-set control point, relay switching, and a 4–20 mA output for connection to a PLC or other compatible monitoring equipment. One SP-1-PSC sensor probe is included.
1. Wide measurement range — monitors EC from 0 to 9,999 µS and TDS from 0 to 5,000 ppm
2. 4–20 mA output — provides an output signal for PLC connection and value recording
3. Adjustable set point — a single set point switches a connected device through dry-contact relay control
4. Audible alarm — activates when the measured TDS/EC level rises above the user-set level; the steady beep can be selected by the user
5. Temperature display — shows water temperature in Celsius or Fahrenheit, with automatic temperature compensation from 1 to 65 °C (33 to 149 °F)
6. Included probe — one SP-1-PSC sensor probe with a 1/2-inch NPT bushing and a 3 m (9.8 ft) shielded cable

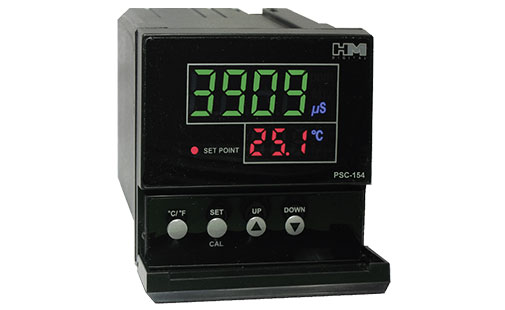

The LED display shows the measured value, the active unit, and the water temperature, with a set-point indicator beside the reading. The front panel carries the temperature unit, setting, up, down, and calibration keys.
Reading, unit and set-point indicator on the display |
Setting, up, down and calibration keys |
| Model | PSC-154 |
| Measurement parameters | Electrical conductivity (EC) and total dissolved solids (TDS) |
| EC range | 0–9,999 µS |
| TDS range | 0–5,000 ppm |
| Temperature range | 1–75 °C (33–167 °F) |
| Accuracy | ±2% of reading |
| Resolution | 0.1 µS/ppm (0–999); 1 µS/ppm (1,000–9,999) |
| TDS conversion factor | NaCl; average factor 0.5 |
| Automatic temperature compensation | Yes, from 1 to 65 °C (33 to 149 °F) |
| Calibration | Digital, push-button calibration |
| Control set point | Single point, adjustable anywhere within the measurement range using the on-screen up/down buttons |
| Relay control | Dry-contact relay switches a circuit when the measured ppm/µS value reaches or exceeds the set point |
| Relay voltage | 5 V |
| Analog output | 4–20 mA |
| Output accuracy | ±1% (mA output) |
| Alarm | User-selectable steady beep when the measured level exceeds the set point |
| Display | Bright 5/8-inch LED display with on-screen temperature |
| Included probe | SP-1-PSC; 1/2-inch NPT bushing, 3 m (9.8 ft) shielded cable |
| Power supply | AC 110 V or AC 220 V, version dependent |
| Dimensions | 7.2 × 7.2 × 11.1 cm (2.8 × 2.8 × 4.4 in.) |
| Monitor weight | 241 g (8.5 oz) |
| Total shipping weight | 610 g (1 lb 5.5 oz) |
Set the desired TDS or EC level using the front-panel controls. When the measured value reaches or exceeds that set point, the PSC-154 changes the relay state to open or close the connected circuit and can sound the selected alarm. The 4–20 mA output can send the measured value to a compatible PLC for monitoring and recordkeeping.
1. Commercial water systems — monitor and control TDS or EC levels in high-output commercial water systems
2. Relay-controlled equipment — the relay output can operate a compatible pump, solenoid valve, or other device when the measured value reaches or exceeds the selected set point
3. PLC monitoring — the 4–20 mA signal supports connection to a PLC for monitoring or recording
