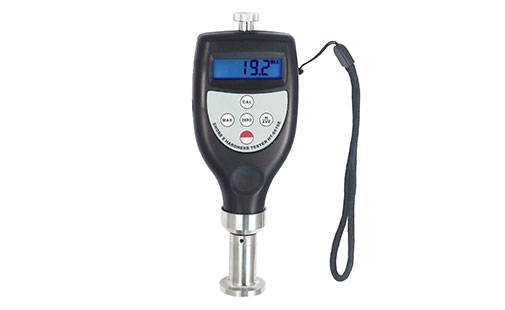

HT-6510 Serials Shore Hardness Tester
Features:
1. It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
2. With average calculate function.
3. Peak value deposit function.
4. Under-voltage alarm function.
5. Use USB data output to connect with PC.
6. Provide Bluetooth data output choice.
Models & Applications:
| Model | Indenter | Tested Materials | Hardness Value |
| HT-6510A | 0.79 Truncated Cone | Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC, Leather, etc. | 20A ~ 90A |
| HT-6510B | R0.1 Cone | Middle Hard Rubber Materials, Typewriter Rollers, etc. | Above 90A, Below 20D |
| HT-6510C | 0.79 Truncated (Frustum) Cone | Plastics and Middle Hard Rubber Materials | Above 90B, Below 20D |
| HT-6510D | R0.1 Cone | Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas, Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc. | Above 90A |
| HT-6510DO | R1.2 Spherical Radius | Plastics and Middle Hard up to Hard Rubber Materials | Above 90C, Below 20D |
| HT-6510O | R1.2 Spherical Radius | Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon | Below 20DO |
| HT-6510OO | R1.2 Spherical Radius | Sponge and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials | Below 20O |
| HT-6510E | R2.5 Spherical Radius | Hard Sponge, EVA | Above 90DO, Below 20D |
| HT-6510AO |
Specifications:
1. Parameters: Tested Result/Mean Value/Max.Value
2. Unit: HA/HB/HC/HD/HE/HAO/HDO/HO/HOO
3. Display Range: 0HA~100HA (HB/HC/HD/HE/HAO/HDO/HO/HOO)
4. Measurement Range: 10HA~90HA (HB/HC/HD/HE/HAO/HDO/HO/HOO)
5. Accuracy: ≤±1H
6. Resolution: 0.1H
7. Battery Indicator: Low Battery Indicator
8. Auto Switch Off
9. Operating: Temperature: 0ºC ~50ºC; Humidity: <80%RH
10. Power Supply: 4x1.5V AAA (UM-4)Battery; 2 x 1.5V AAA (UM-4) Battery (Stand Available)
11. Dimensions: 162 x 65 x 28mm
12. Weight: 170g
Optional Accessories:
1. Shore Hardness Tester Measurement Stand
2. Rubber Hardness Test Block (A/D Type)
3. USB Data Cable with Software
4. Bluetooth Data Adapter with Software
