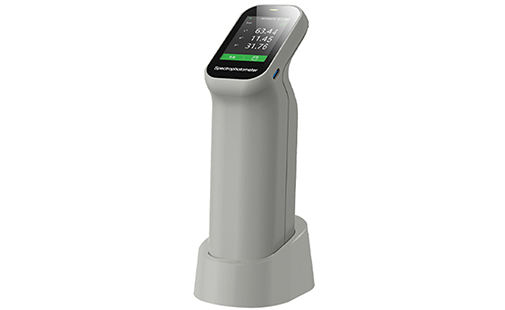

AMT504 Colorimeter Color Difference Measuring Instrument

AMT504 Colorimeter is a stable and reliable color difference measuring instrument. In order to meet the general color measurement needs, AMT504 color difference meter still maintains excellent repeatability, repeatability dE*ab≤0.03. AMT504 color difference meter is easy to operate and very easy to use; It can also connect the mobile APP, wechat mini program, computer management software, and carry out color measurement work at any time.

Features:

1. Contains SCI measurement mode: SCI refers to specular reflections that are generally used to study the properties of a color itself without regard to the surface gloss of the sample to which it is attached.

2. Calibration base and zirconium reference with a Mohs hardness of 9 to calibrate the instrument, ensuring long-term stability

3. Support WeChat applet, Android, Apple, Hongmeng mobile APP

4. Use the powerful PC-based colour management system

Specifications:

1. Measurement structure: D/8, SCI

2. Measurement repeatability: ΔE*ab ≤ 0.03

3. Display accuracy: 0.01

4. Measuring aperture: There are two types of stable type and smart type: Φ6mm, ▽6mm

5. Measurement index: CIE-Lab,Chromatic Aberration ΔE*ab

6. Light source condition: D65

7. Lighting source: All-band equalization LED light source

8. Measurement and observation mode: Visual

9. Calibrate: Manual calibration

10. Software support: Andriod, iOS, Windows, Wechat mini program

11. Accuracy guarantee: Assurance of metrology

12. Field Angle: 10°

13. Integrating sphere diameter: 40mm

14. Meet the standard: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033

15. Spectroscopic method: Nano integrated spectral device

16. Inductor: Silicon photodiode array double16 groups

17. Wavelength interval: 10nm

18. Wavelength range: 400~700nm

19. Reflectance measurement range: 0-200%

20. Reflectance resolution: 0.01%

21. Measurement mode: Single measurement, average measurement (2~99 Times)

22. Measuring time: About 1s

23. Port: USB, Bluetooth

24. Screen: IPS full color screen, 2.4 inches

25. Battery capacity: Continuous measurement on a single charge8000 times, 3.7V/3000mAh

26. Light source lifetime: 1 million times in 10 years

27. Language: Simplified Chinese, English

28. Store: Instrument: standard sample100 pieces, 10000 samples; APP mass storage

Optional Parts:

1. Powder measuring cassette

2. Powder measuring cassette - clear glass slides

3. Ceramic panels

4. 800 quartz cylindrical cuvette (outer size φ32*41mm, wall thickness 1.5mm)
