Leak Detector
Keywords: freon leak detector, WJL-6000 halogen detector, refrigerant leak detector, R134a leak detector, R22 leak detector

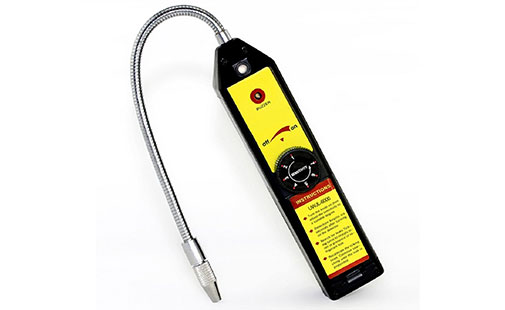

Hand-held halogen leak detector for all kinds of refrigerants including CFCs, HCFCs and HFCs, with a maximum sensitivity of 6 gr/yr and instantaneous response.
1. High sensitivity — detects halogen leaks down to a maximum sensitivity of 6 gr/yr.
2. Broad refrigerant coverage — detects CFCs, HCFCs, HFCs, blends and A2L refrigerants such as R11, R12, R22, R134a, R404A and R410A.
3. Instantaneous response — reacts immediately for fast leak location.
4. Continuous operating mode — unlimited running time during normal use.
5. Long battery life — about 50 hours under normal use on 4 x AAA batteries.
6. Fast preheat — ready in about 6 seconds, reset time 2 to 10 seconds.
| Maximum Sensitivity | 6 gr/yr for all halogen refrigerants |
| Working Temperature | 0 °C ~ 52 °C |
| Battery Life | About 50 hours under normal use |
| Response Time | Instantaneous |
| Operating Mode | Continuous, unlimited |
| Fixed Probe Length | 20 cm (7.87 inches) |
| Preheating Time | About 6 seconds |
| Reset Time | 2 ~ 10 seconds |
| Dimension | 22.9 cm x 6.5 cm x 6.5 cm (9.01 x 2.56 x 2.56 inches) |
| Battery | 4 x AAA batteries (not included) |
| CFCs | R11, R12, R13, R113, R114, R500, R502, R503, etc. |
| HCFCs | R22, R123, R124, R401A, R401B, R402A, R403B, R408A, R409A, R414B, R416A, etc. |
| HFCs | R23, R134a, R404A, R407C, R410A, R417A, R422A, R422B, R422D, R507, R508B, etc. |
| Blends | AZ-50, HP62, MP39, etc. |
| A2L Refrigerants | A2L low-GWP refrigerants |
1. Detecting ethylene oxide gas leaks in hospital sterilizing equipment.
2. Detecting SF-6 in high voltage circuit breakers.
3. Detecting halogen gas and most gases which contain chlorine, fluorine and bromine.
4. Detecting cleaning agents used in dry cleaning applications.
5. Detecting halogen gases in fire-extinguishing systems.
