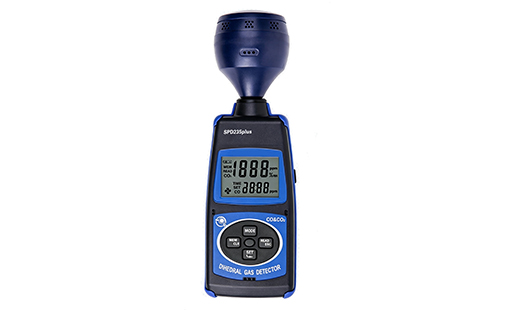

SPD235PLUS CO and CO2 Concentration Detector

Features:

Simultaneously measure the concentrations of CO and CO2 in the air, and can serve as a monitoring controller to control relays and connect external ventilation equipment for ventilation when the gas concentration exceeds the

standard. SPD235plus is designed to enhance industrial and environmental applications, using dual wavelength non dispersive infrared CO2 sensors and electrochemical CO sensors. It has high accuracy and can display both gas measurements simultaneously, with ultra-low power consumption and long standby time.

Specifications:

1. Display: Dual row 4-digit LCD display with chameleon highlight backlight

2. CO2 measurement range: 0 ~ 4000ppm

3. Measurement error: ±50ppm

4. Preheating response time: Less than 5 minutes

5. Sensor principle: Non dispersive infrared absorption technology, with an average current of less than 3mA

6. CO measurement range: 0 ~ 1000ppm

7. Sensor principle: Electrochemical sensor

8. Measurement erro: ±5%

9. Resolution: 1ppm

10. Alarm method: Audible and visual alarm (when the alarm value is exceeded, both the sound and the red backlight flash will alert at the same time)

11. Power supply: 4 x 1.5V AA alkaline battery
