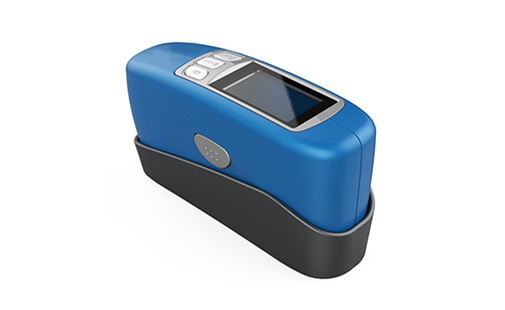

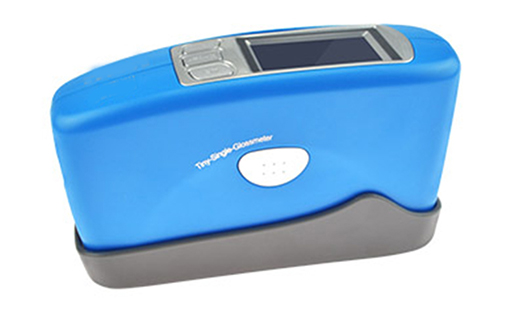

MULTI-ANGLE GLOSS METERS FOR SURFACE FINISH
The AMT602, AMT602S, and AMT603 gloss meters measure surface gloss on paint, plastic, metal, ceramics, and building materials. The AMT602 and AMT602S use a 60° measurement angle, while the AMT603 offers multiple angle settings for a wider range of gloss levels. A reading takes less than one second, and stored results can be reviewed or transferred through the instrument interface.
Choose the model and measurement geometry to match the surface and gloss range being evaluated. This gloss meter series supports simple, standard, and sample testing modes, with dedicated storage for standard samples and test results.
1. Single and multi-angle — AMT602 and AMT602S provide 60° gloss measurement; AMT603 is designed for multi-angle measurement
2. Resolution and speed — 0.1 GU display resolution and measurement time under one second
3. Testing modes — Simple, standard, and sample testing modes
4. Onboard storage — Storage for up to 100 standard samples and 10,000 test samples
5. Data connection — USB data connection; Bluetooth connectivity is optional
6. Battery — 3,000 mAh lithium battery, specified to support up to 54,300 tests per charge
7. Standards — The supplied information states conformity with the listed gloss measurement standards

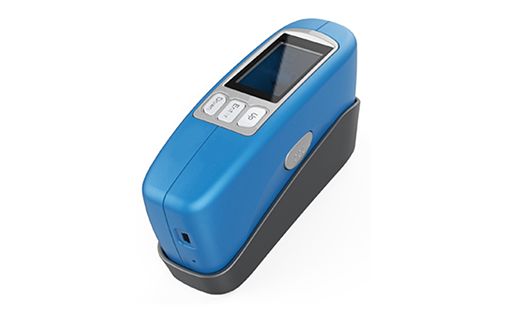

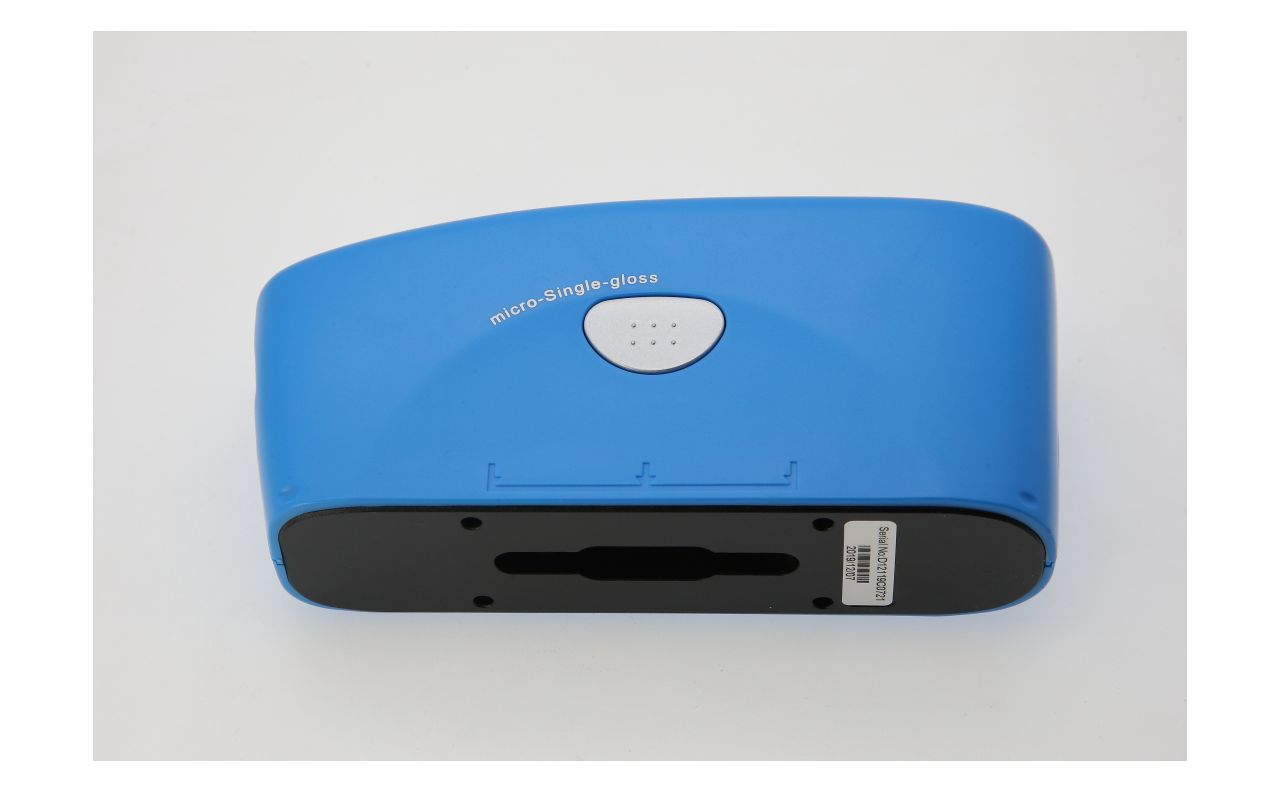

The display reports the reading for each measurement angle, and the housing carries the measuring button on the top face with the keypad alongside the screen.
Multi-angle readout on the display |
Measuring button on the top face |
| Measurement angle | AMT602 | AMT602S | AMT603 |
| Measurement spot | 60°: 9 × 15 mm | 60°: 2 × 3 mm | 20°: 10 × 10 mm; 60°: 9 × 15 mm; 85°: 5 × 38 mm |
| Measurement range | 60°: 0–1,000 GU | 60°: 0–600 GU | 20°: 0–2,000 GU; 60°: 0–1,000 GU; 85°: 0–160 GU |
Angle for AMT602 and AMT602S: 60°; for AMT603: 20°, 60°, 80°*.
| Resolution and repeatability | 0.1 GU; 0.2% GU |
| Accuracy | Listed as conforming to JJG 696 Class 1 gloss meter requirements |
| Test modes and speed | Simple, standard, and sample testing; less than 1 second |
| Data storage | 100 standard samples; 10,000 test samples |
| Dimensions and weight | 165 × 51 × 77 mm; approximately 400 g |
| Battery and interface | 3,000 mAh lithium battery; USB, Bluetooth optional |
| Operating conditions | 0 to 40 °C; below 85% RH, non-condensing |
| Referenced standards | DIN 67530; ISO 2813; ASTM D 523; JIS Z 8741; BS 3900 Part D5; JJG 696 |
| Standard accessories | 5 V/2 A charger; USB cable; operating manual; software CD; calibration boards |
1. Surface finish checks — Compare and document surface finish on painted, plastic, metal, ceramic, and building-material samples
2. Single-angle measurement — The AMT602 and AMT602S are single-angle options for 60° measurement
3. Different gloss ranges — The AMT603 includes additional angle settings for evaluating surfaces across different gloss ranges
