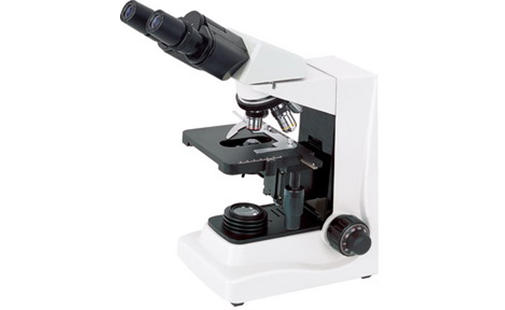

N-400M Biological Microscope
| High transmission optical system, combined base and arm design and wide range of accessories make it an ideal instrument for biology, bacteriology, histology, immunology and pharmacology. |
| Features: |
| Monocular, Binocular and Trinocular Head Available for Different Requirements |
| Big Operating Space With Backward Nosepiece Easier Comparing Test with Large Size Double Layer Mechanical Stage |
| More Comfortable Operation with Low Position CA and FA Knob, Low Stage Control and Narrow Base Even Illumination with Modern Design, Kohler Illumination and Aspheric Collector can be Adapted |
| Aluminium Carrying Case Available for High Level Packing Requirement |
| N-400M | ||
| Viewing Head | Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable | ● |
| Monocular Head, Inclined at 30°, 360° Rotatable | ○ | |
| Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable | ○ | |
| Eyepiece | Wide Field Eyepiece WF10X/ 18 | ● |
| Wide Field Eyepiece WF16X/ 11 | ○ | |
| Objective | Achromatic Objective 4X, 10X, 40X, 100X | ● |
| Achromatic Objective 20X, 60X | ○ | |
| Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X, 100X | ○ | |
| Nosepiece | Backward Quadruple Nosepiece | ● |
| Backward Quintuple Nosepiece | ○ | |
| Stage | Double Layers Mechanical Stage 140x140mm/ 75x50mm | ● |
| Condenser | NA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment | ● |
| Focusing | Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm | ● |
| Illumination | Halogen Lamp 6V/ 20W, Brightness Adjustable | ● |
| Kohler Illumination | ○ | |
| Polarization Set | Simple Polarization Set | ○ |
| Phase Contrast Kit | Simple Phase Contrast Kit | ○ |
| Sliding Phase Contrast Kit | ○ | |
| Turret Phase Contrast Kit | ○ | |
| Dark Field Attachment | Dark Field Condenser (Dry) NA 0.9 | ○ |
| Dark Field Condenser (Oil) NA 1.25-1.36 | ○ | |
| Epi-fluorescent Attachment | ○ | |
| Filter | ● | |
| Photo Attachment | ○ | |
| Video Attachment | ○ | |
| Note: ● Standard Outfit, ○ Optional | ||
