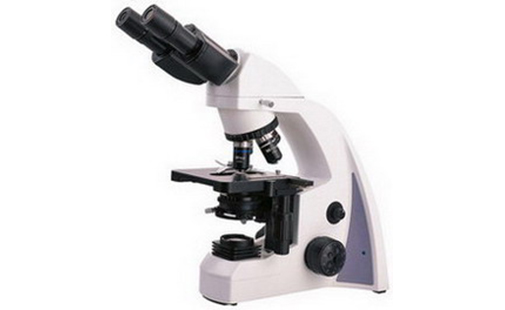

N-300M Biological Microscope
| Excellent image quality with infinitive optical system. |
| Comfortable operating with ergonomic structure. |
| Better illumination with sliding-in centerable condenser, Convenient replacement with phase contrast and dark field condenser. |
| Features |
| Extra Wide Field Eyepiece EW10X/20 with Diopter Adjustment as Optional |
| Comfortable Observation with Eyepoint and interpupillary adjustable |
| Sliding-in Centerable Condense Adjustable |
| Handle for easy carrying |
| Lamp Replacement by Direct Removing Housing |
| N-300M | ||
| Viewing Head | Compensation Free binocular head, 30° inclined, Interpupillary 48-75mm | ● | |
| Compensation Free trinocular head, 30° inclined, Interpupillary 48-75mm | ○ | ||
| Eyepiece | Wide Field Eyepiece WF 10X /18 | ● | |
| Extra Wide Field Eyepiece EW10X /20 with Diopter Adjustment | ○ | ||
| Objective | Infinitive Semi-plan Achromatic Objectives | 4X | ● |
| 10X | ● | ||
| 40X | ● | ||
| 100X | ● | ||
| Nosepiece | Quadruple Nosepiece | ● | |
| Stage | Double Layers Mechanical Stage 140mm x 140mm/ 75mm x 50mm | ● | |
| Condenser | Sliding-in centerable condenser NA12.5 | ● | |
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ● | |
| Illumination | 6V/ 20W Halogen Lamp, Brightness Adjustable | ● | |
| Phase Contrast Kit | ○ | ||
| Dark Field Attachment | ○ | ||
| Note: ● Standard Outfit, ○ Optional | |||
