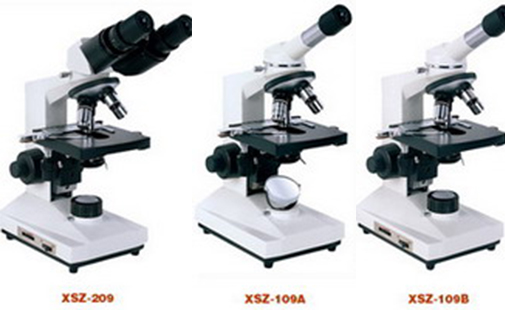

XSZ-109 Series Biological Microscope
| Specification: | XSZ-109A | XSZ-109B | XSZ-209 | |
| Viewing Head | Monocular Head, Inclined at 30°, 360°, Rotatable | ● | ● | |
| Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable | ● | |||
| Eyepiece | Wide Field Eyepiece WF10X/ 18 | ● | ● | ● |
| Wide Field Eyepiece WF16X/ 11 | ● | ● | ● | |
| Objective | Achromatic Objective 4X, 10X, 40X,100X | ● | ● | ● |
| Nosepiece | Quadruple Nosepiece | ● | ● | ● |
| Stage | Double Layer Mechanical Stage, 120 x 120mm/ 60 x 30mm | ● | ● | ● |
| Condenser | Abbe NA1.25 with Iris Diaphragm and Filter | ● | ● | ● |
| Illumination | Built-in Illumination, Halogen Lamp 6V/ 15W | ● | ● | |
| Plan-concave Mirror | ● | ○ | ○ | |
| Filter | Blue Filter | ● | ● | ● |
| Green Filter | ● | ● | ● | |
