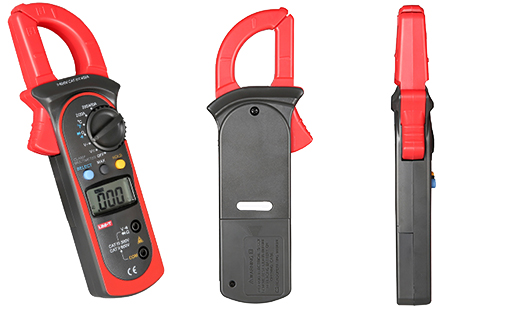

UT202 Digital Clamp Meters
Features:
1. Auto range
2. Data hold/auto power off
3. MAX mode
4. K-type temperature probe
5. 3s sampling rate
6. Low battery prompt, over-range prompt and auto polarity display
Specifications:
Model | UT202 | |
| AC Current | 2A/ 20A/ 200A/ 400A | ±(1%+9) |
| AC Voltage | 2V/ 20V/ 200V /600V | ±(1.2%+5) |
| DC Voltage | 200mV/ 2V/ 20V/ 200V/ 600V | ±(0.8%+1) |
| Resistance | 200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ | ±(1%+2) |
| Temperature | -40°C ～ 1000°C | ±(1%+7) |
| Temperature | -40°F～1832°F | ±(1%+8) |
| Features | ||
| Display Count | 2000 | |
| Auto Range | √ | |
| Manual Range | ||
| Jaw Capacity | 28mm | |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| MAX Mode | √ | |
| MIN Mode | ||
| Full Icon Display | √ | |
| DCV Input Impedance | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V Batteries (R03) x 2 | |
| LCD Size | 35.6mm x 18mm | |
| Product Color | Red and grey | |
| Product Net Weight | 220g | |
| Product Size | 210mm x 75.6mm x 30mm | |
| Accessories | Battery, Test Lead, Carrying Bag, Point Contact Temperature Probe | |
| Individual Packing | Gift Box, English Manual | |
| Quantity Per Carton | 48pcs | |
| Carton Size | 503 x 485 x 295mm | |
| Carton Gross Weight | 24.8kg | |
