FM-100V5 Portable Flow Meter

Keywords: portable flow meter, velocity meter, open channel flow meter, water velocity meter, flow velocity meter

FM-100V5 portable flow meter for reliable open-channel velocity measurement in the field, from 0.01 up to 5.00 m/s.

The FM-100V5 is a portable flow rate meter designed for hydrological stations, factories and mines, environmental protection monitoring stations, farmland irrigation and drainage, and hydrogeology surveys — wherever the velocity of flow in an open channel needs to be measured. Flow velocity is computed automatically from the formula V = KN/T + C, with the instrument constants K: 0.0500 and C: 0.0100 pre-set at the factory. The supplied pole sections extend to 30 cm + 20 cm for reaching the measuring point.

Key Features

1.  Measures in sewage environments — usable where water quality is poor.

2.  Simple structure, light and convenient — easy to carry between field sites.

3.  Low power consumption with complete functions — 4xAAA batteries and LED backlight.

4.  High degree of automation — stable, reliable operation with automatic calculation.

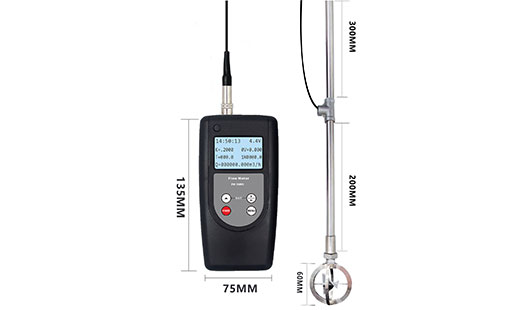

5.  Pole positioning measurement — 30 cm + 20 cm pole sections included.

6.  Clear LCD readout — backlit display for dim or shaded conditions.

Built for Real Use

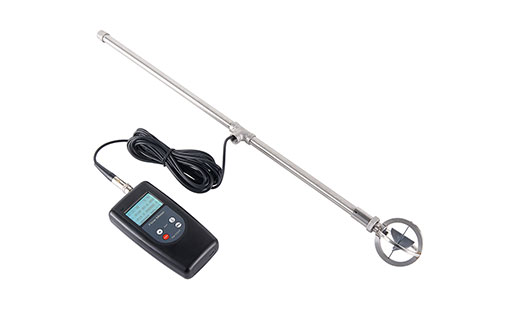

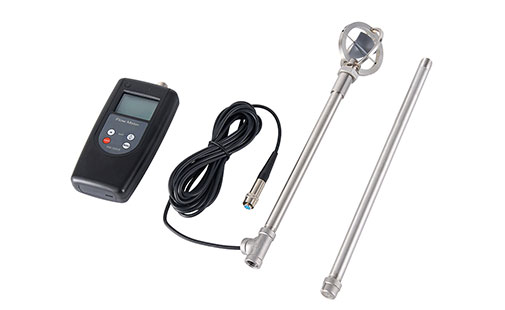

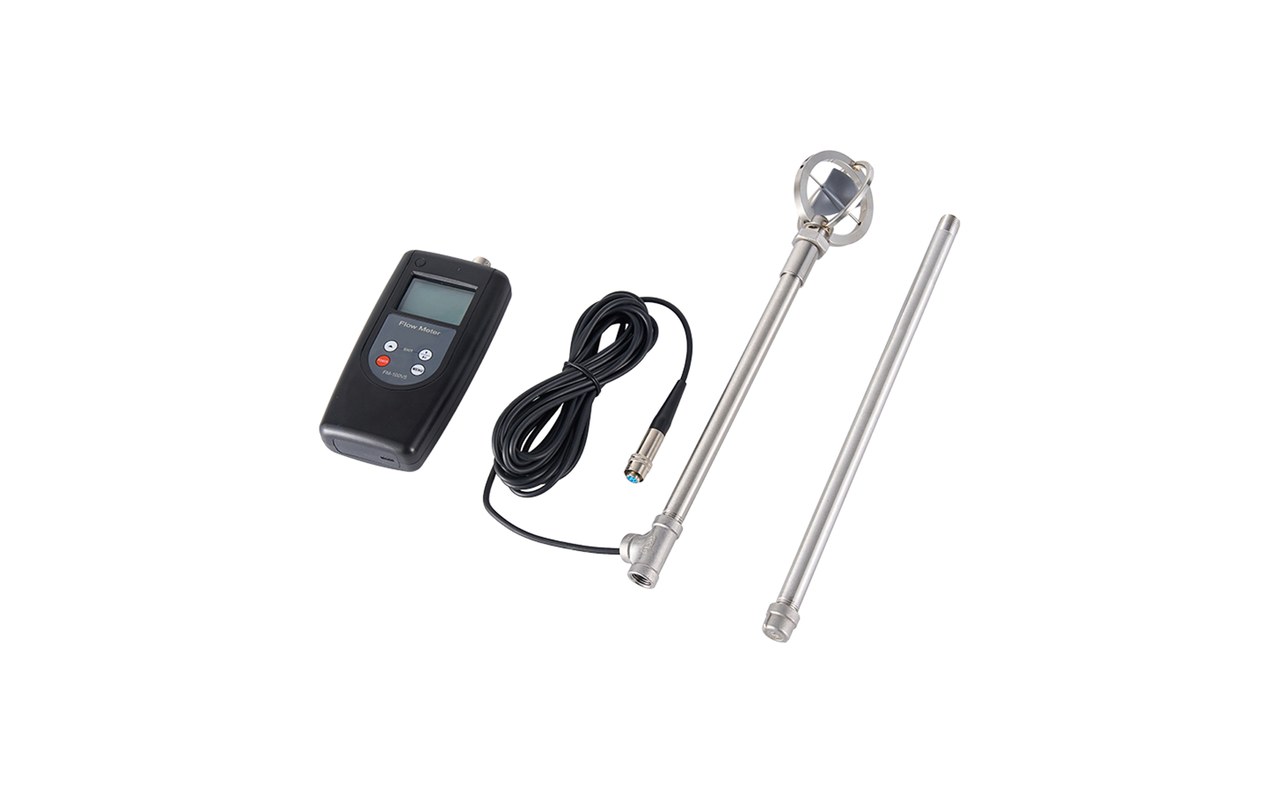

Host, cable, pole and propeller probe are laid out as a complete field kit — ready to deploy and simple to carry.

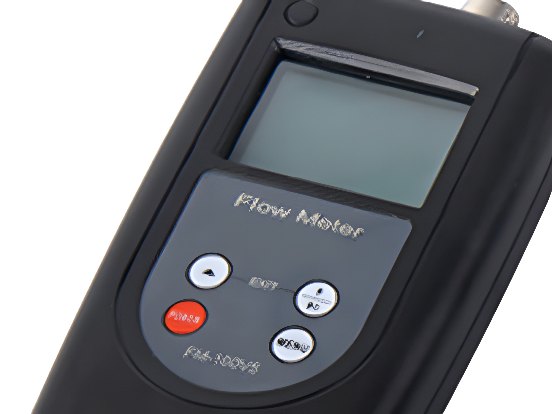

Handheld host with LCD and control keys

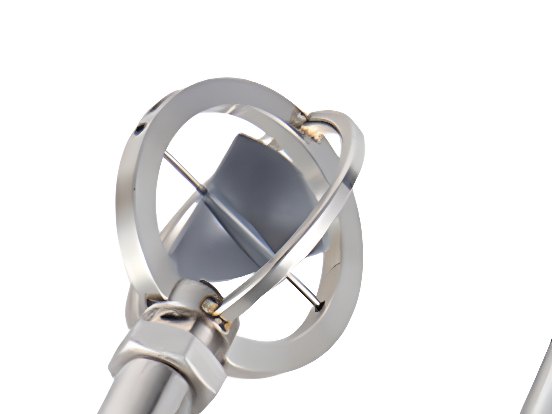

Propeller velocity probe with protective cage

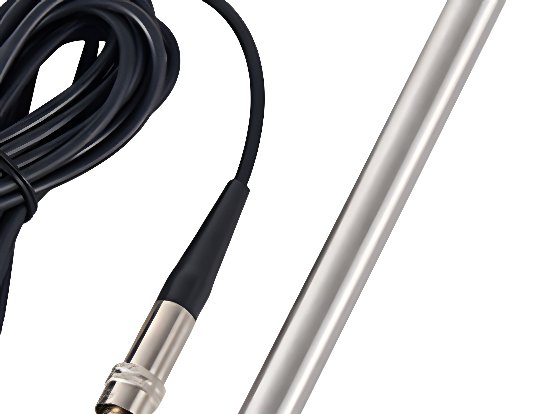

Cable and quick connector between probe and pole

Technical Specifications

Applications

1.  Hydrological stations and hydrogeology surveys.

2.  Factories, mines and environmental protection monitoring stations.

3.  Farmland irrigation and drainage channels.

4.  Open-channel flow velocity measurement, including sewage environments.
