Ultrasonic Flowmeter Series
Keywords: ultrasonic flow meter, handheld ultrasonic flowmeter, portable ultrasonic flow meter, clamp-on ultrasonic flow meter, digital ultrasonic flow meter

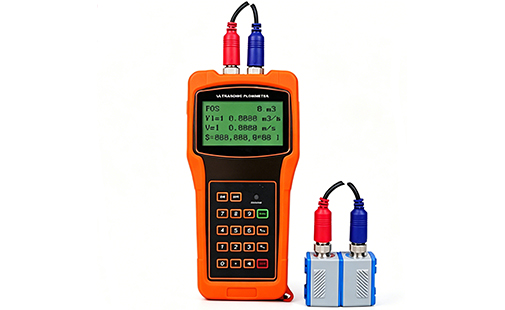

T2000H handheld ultrasonic flowmeter for non-contact, clamp-on flow measurement of liquids — no pipe cutting, no flow interruption.
The T2000H realizes non-contact measurement of liquid flow. The transducer is mounted on the outer wall of the pipeline to complete the flow measurement, so there is no need to cut into the pipe or stop the process. It is characterized by small size, convenient carrying and accurate measurement, making it suitable for both field surveys and fixed installation checks.
1. Non-contact, clamp-on measurement — the transducer mounts on the pipe outer wall; no cutting, no flow interruption.
2. Small size and convenient carrying — a handheld instrument for field work.
3. Accurate measurement — 1% accuracy across a wide pipe range.
4. Wide pipe coverage — from DN15 up to DN6000.
5. Built-in 32K memory — stores up to 2000 lines of measurement data (a 32MB memory version is optional).
6. RS232 data interface — connects to a PC for data transfer.
7. 16+2 touch keyboard — with clear LCD display.
8. Rechargeable NI-MH batteries — more than 12 h of working time.

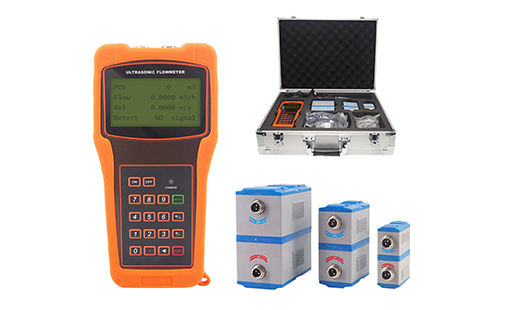

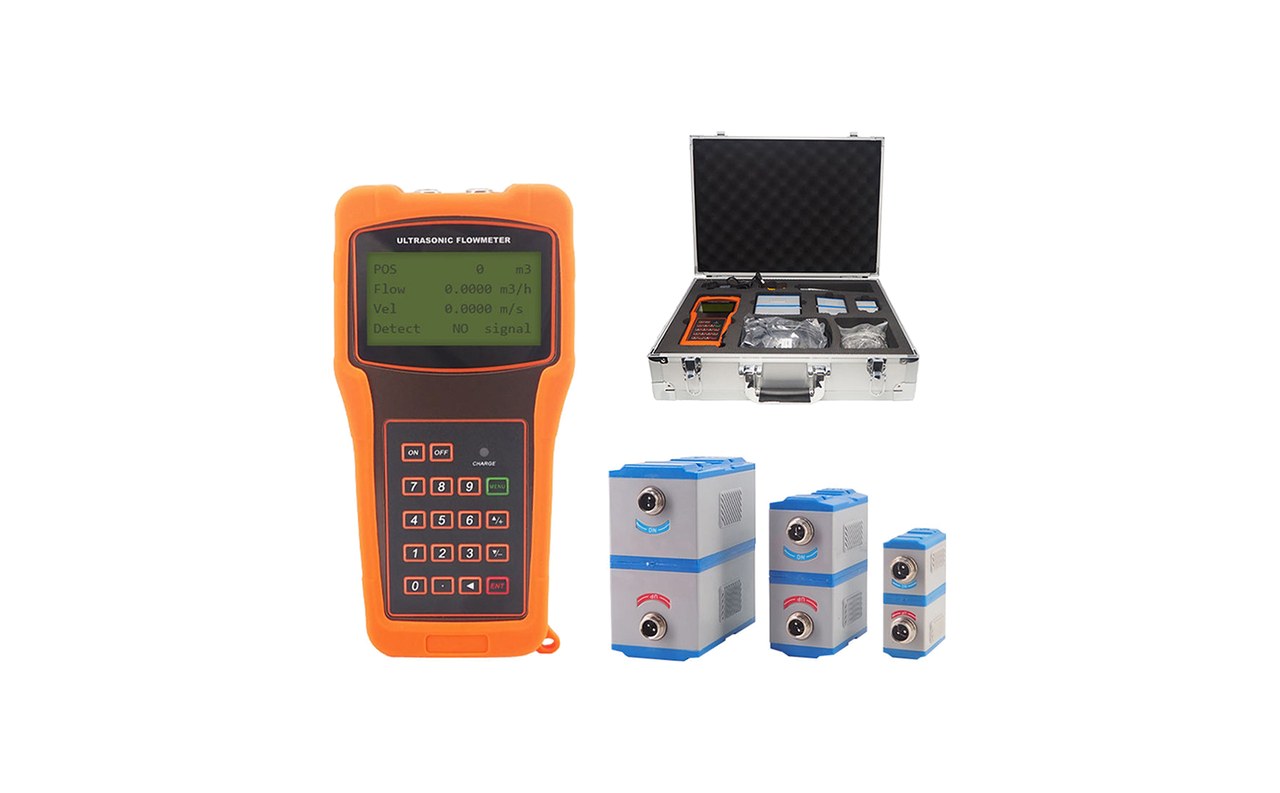

Host, transducers and carry case form a complete field kit — clear readings, easy entry, robust transport.

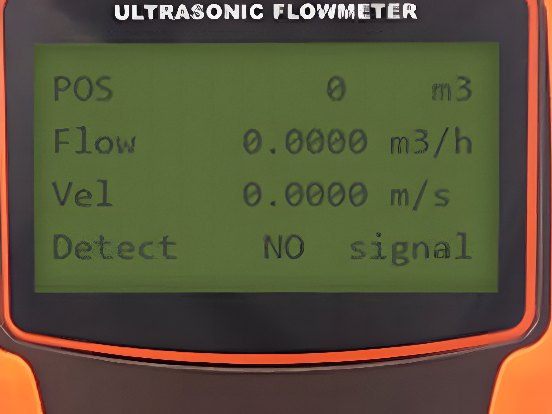

LCD display: POS, Flow, Vel and Detect readouts
|

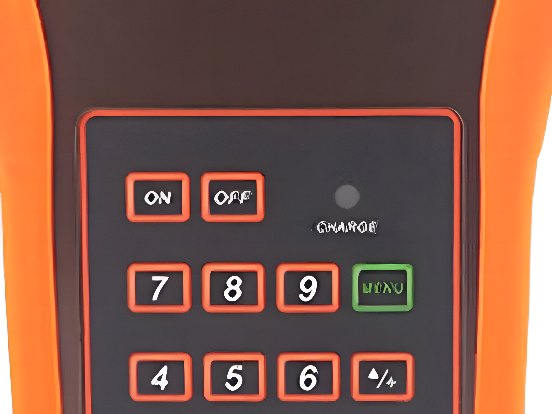

16+2 touch keyboard with ON/OFF and charge indicators
|

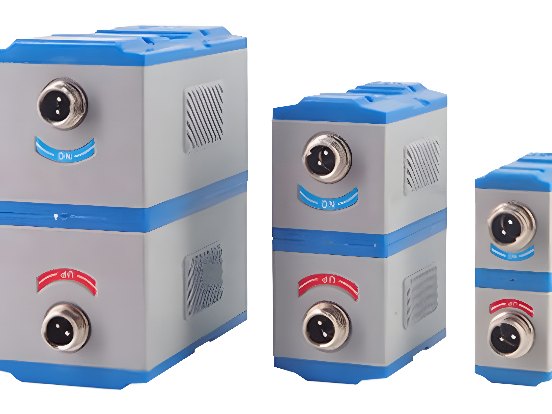

Three types of clamp-on transducers supplied
|
| Accuracy | 1% |
| Tube diameter | DN15 ~ DN6000 |
| Flow rate | 0 ~ ±10 m/s |
| Turbidity | 10000 ppm, and the bubble content is small |
| Medium temperature | -30 ~ 160°C (-22 ~ 320°F) |
| Applicable pipes | Steel, stainless steel, copper, PVC, aluminum, fiberglass and other pipes. Lining is allowed. |
| Data interface | RS232 |
| Display | LCD display |
| Keyboard | 16+2 touch keyboard |
| Data record | Built-in 32K memory, stores up to 2000 lines of measurement data (a 32MB memory version is optional) |
| Power supply | Rechargeable NI-MH batteries 2000 mAh |
| Work time | More than 12 h |
| Type | Order code | Pipe size | Temperature |
| Clamping on, normal temperature | T2000H-TS-2 | DN15 ~ DN100 | -30 ~ 90°C (-22 ~ 194°F) |
| T2000H-TM-1 | DN50 ~ DN700 | -30 ~ 90°C (-22 ~ 194°F) | |
| T2000H-TL-1 | DN300 ~ DN6000 | -30 ~ 90°C (-22 ~ 194°F) | |
| Clamping on, high temperature | T2000H-TS-2-HT | DN15 ~ DN100 | -30 ~ 160°C (-22 ~ 320°F) |
| T2000H-TM-1-HT | DN50 ~ DN700 | -30 ~ 160°C (-22 ~ 320°F) | |
| T2000H-TL-1-HT | DN300 ~ DN6000 | -30 ~ 160°C (-22 ~ 320°F) | |
| Rail type, normal temperature | T2000H-HS | DN15 ~ DN100 | -30 ~ 90°C (-22 ~ 194°F) |
| T2000H-HM | DN50 ~ DN300 | -30 ~ 90°C (-22 ~ 194°F) | |
| T2000H-EB-1 | DN300 ~ DN700 | -30 ~ 90°C (-22 ~ 194°F) | |
| Rail type, high temperature | T2000H-HS-HT | DN15 ~ DN100 | -30 ~ 160°C (-22 ~ 320°F) |
| T2000H-HM-HT | DN50 ~ DN300 | -30 ~ 160°C (-22 ~ 320°F) | |
| T2000H-EB-1-HT | DN300 ~ DN700 | -30 ~ 160°C (-22 ~ 320°F) |
1. Water supply and drainage pipeline flow surveys.
2. HVAC, cooling water and circulating water systems.
3. Industrial process monitoring where the pipe cannot be opened.
4. Energy management, balance testing and leak detection.
