IP67 WATERPROOF DIGITAL MEASUREMENT

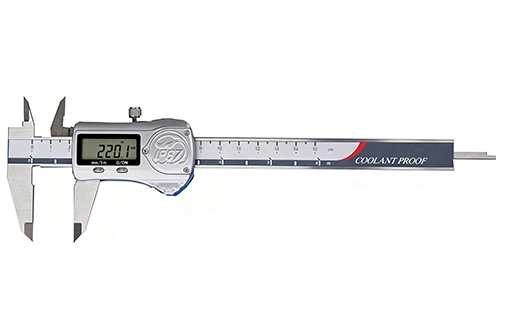

The 101-520 is an IP67 waterproof digital caliper for workshop use, including environments exposed to coolant, water, dust or oil — it can even be used in water. It offers the same reliability as a vernier caliper with a high protective level, and its absolute encoding measuring system avoids loss of the measurement origin when the slider is moved fast or interfered with. The origin is not lost even after power turn-off or battery replacement, so there is no need to re-set the origin before each measurement.
1. IP67 protection — waterproof, oil proof, antistatic and anti-electromagnetic interference; protection level IP67 to CEI 60529
2. Absolute encoding system — the measurement origin is not lost when the slider is moved quickly or disturbed, nor after power turn-off or battery replacement
3. Two-button design — menu prompt, simple, convenient and easy to operate
4. Power management — manual / automatic power switch with automatic shutdown after 5 minutes without use
5. Error alarms — low-voltage alarm plus high and low temperature alarms
6. Infinite response speed — no speed error during movement
7. ABS / INC modes — metric and inch unit conversion
8. Long battery life — 3 V lithium battery (CR2032), approximately 2000 hours; packed in a plastic box
The caliper combines internal and external measuring jaws with a clear LCD and a simple two-button control layout. Origin-related errors are avoided by the absolute encoding system, and readings convert between metric and inch units in either ABS or INC mode.
Internal and external measuring jaws |
LCD display and control buttons |

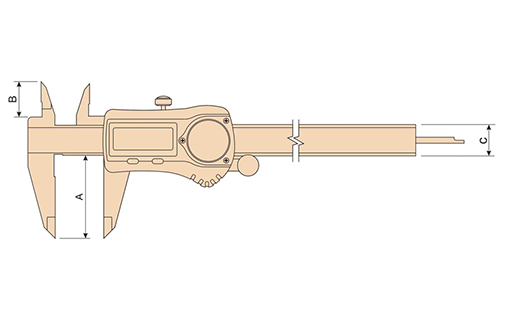

A, B and C dimension diagram |
| Protection level | IP67 (CEI 60529); waterproof, oil proof, antistatic, anti-electromagnetic interference |
| Measuring system | Absolute encoding; origin retained after power turn-off or battery replacement |
| Resolution | 0.01 mm / 0.0005 in |
| Functions | ABS / INC mode; metric / inch conversion; infinite response speed with no speed error; two-button operation with menu prompt |
| Power | 3 V lithium battery (CR2032); manual / automatic power switch; automatic shutdown after 5 minutes without use |
| Battery life | Approximately 2000 hours |
| Alarms | Low-voltage alarm; high and low temperature alarms |
| Packing | Packed in plastic box |
The 101-520 series is supplied in four order numbers, each with its own measuring range and jaw dimensions. Values are reproduced as listed in the product data.
| Order No. | Range | Resolution | A (mm) | B (mm) | C (mm) | Accuracy |
| 101-5201 | 0–150 mm / 6" | 0.01 mm / 0.0005 in | 40 | 16.5 | 16 | ±0.03 mm |
| 101-5202 | 0–200 mm / 8" | 0.01 mm / 0.0005 in | 50 | 20 | 16 | ±0.03 mm |
| 101-5203 | 0–300 mm / 12" | 0.01 mm / 0.0005 in | 60 | 20.5 | 17 | ±0.04 mm |
| 101-5204 | 0–500 mm / 20" | 0.01 mm / 0.0005 in | 100 | 40 | 25 | ±0.05 mm |
1. No origin setting needed — the absolute encoding system keeps the measurement origin, so there is no need to re-zero before each measurement
2. Cleaning after use — rinse with clean water and dry the jaws after contact with coolant, water, dust or oil
3. Watch the battery — replace the CR2032 when the low-voltage alarm appears; the origin is retained across battery replacement
4. Choose the right order number — each order number covers a different measuring range, so confirm the range before ordering
5. Unit conversion — 1 mm = 0.03937 in; switch between metric and inch readings as needed
