Product Description

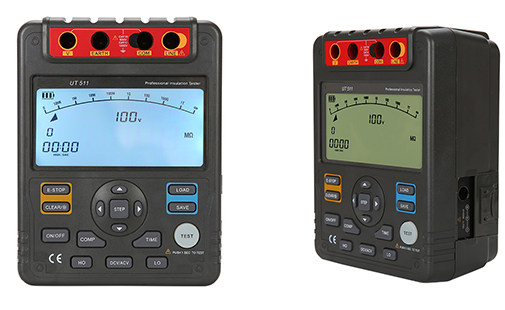

UT511 Insulation Resistance Tester

Features:

1. Large 9999 display with 30-segment analog bar graph

2. PI/DAR measurements

3. Comparison, upper and lower limit functions

4. Continuous measurement mode

5. Auto power off

6. 18-group data storage

7. Backlight

8. Auto current discharge and high-voltage output alarm

9. Timer measurement mode, auto measure within 15 minutes

10. Low battery and over range indications

Specifications:

1. Insulation Resistance (Ω): Range: Test Voltage: 100V/250V/500V/1000V, Accuracy: 0%~20%

Specifications	Range		Accuracy
Model			UT511
Insulation Resistance	Test Voltage	100V/250V/500V/1000V	0%~20%
	100V	0.1MΩ~500MΩ	±(3%+5)
	250V	0.5MΩ~2GΩ	±(3%+5)
	500V	1MΩ~4GΩ	±(3%+5)
	1000V	2MΩ~10GΩ	±(3%+5)
	Short Circuit Current		<2mA
DC Voltage (V)	1000V		±(2%+3)
AC Voltage (V)	750V		±(2%+3)
Low Resistance	0.1Ω～999.9Ω		±(1%+3)
Features
Auto Range			√
Auto Power Off			√
Low Battery Indication			√
Data Storage			18
Comparison			√
DAR			√
PI			√
LCD Backlight			√
Analog Bar Graph			30
Overload Indication			√
High Voltage Indication			√
Timer	Around 30 Minutes		√
General Characteristics
Power	1.5V Batteries (LR14) x 8
LCD Size	123mm x 58mm
Product Color	Red and Grey
Product Weight	1.2kg
Product Size	202x155x94mm
Standard Accessories	2pcs of one plug test lead to one alligator clip (Black and Green), 1pcs of two-plug test lead to one alligator clip (Red), Batteries
Individual Packing	Gift Box, Tool Box, User Manual
Quantity Per Carton	4pcs
Carton Size	525x335x345mm
Carton Weight	13kg
Optional Accessories	Power Adapter
