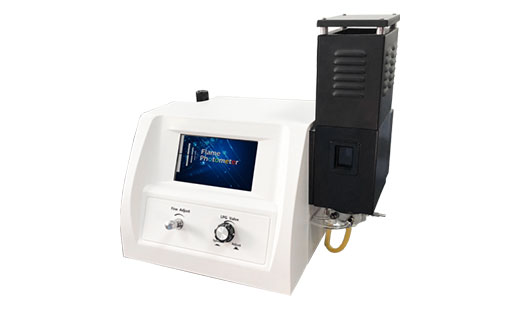

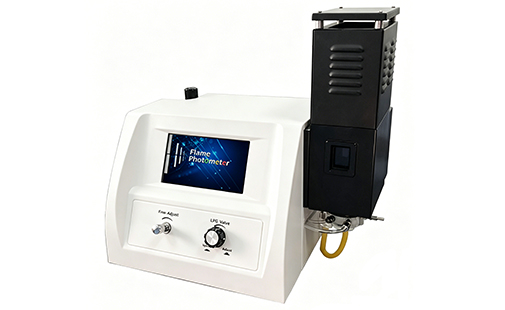

FP640 Serials Muliti Element Flame Photometer
Features:
1. Push-button ignition, easy to operate. 7 inch color touch LCD capacitive screen, intuitive reading.
2. Elements concentration reading function, automatic correlation coefficient calculation function (not include FP640).
3. 20 sets of standard curves and 20 sets of test data can be stored. Use LPG as gas.
4. Gas flow is adjustable in direct reading. Gas leakage alarm, automatic gas cut-off function.
5. Accidental flameout, automatic shutdown protection. Multiple language support.
6. With USB communication port, can be directly connected to the computer, convenient data analysis.
7. Optional built-in printer and professional data processing software.
8. Detection range screen switching function (according to specific model).
Specifications:
| Model | FP6450 | FP6440 | FP6431 | FP6430 | FP6410 | FP640 | |
| Test Element | K/ Na/ Li/ Ca/ Ba | K/ Na/ Li/ Ca | K/ Na/ Ca | K/ Na/ Li | K/ Na | ||
| Channel Qty. | 5 | 4 | 3 | 2 | |||
| LOD (ppm) | K | ≤0.156 | |||||
| Na | ≤0.184 | ||||||
| Li | ≤0.1035 | -- | ≤0.1035 | -- | -- | ||
| Ca | ≤2 | -- | -- | -- | |||
| Ba | ≤6.028 | -- | -- | -- | -- | -- | |
| Linear Error | K | ≤0.195 | |||||
| Na | ≤0.69 | ||||||
| Li | ≤0.1449 | -- | ≤0.1449 | -- | -- | ||
| Ca | ≤3 | -- | -- | -- | |||
| Ba | ≤9.402 | -- | -- | -- | -- | -- | |
| Test Range | K | 0.15~100 | |||||
| Na | 0.18~100 | ||||||
| Li | 0.1~30 | -- | 0.1~30 | -- | -- | ||
| Ca | 0.1~1000 | -- | -- | -- | |||
| Ba | 0.1~300 | -- | -- | -- | -- | -- | |
| Printer | Optional built-in thermal printer | -- | |||||
| Communication | USB | -- | |||||
1. Response time: 8s
2. Sample uptake: <3ml/min
3. Stability: ≤3%(15s), ≤15% (6min)
4. Reproducibility: ≤2%
5. Air compressor: Built-in
6. Fuel: LPG
7. Power: AC220V±10%, 50Hz±1Hz, 30W
8. Package: 570 x 530 x 400mm; 18kg
Standard Accessories:
1. LPG reducing Valve: 1 pc
2. Stainless steel bellows for LPG: 1 pc
3. Silica gel tubing for waste liquid: 1 pc
4. PU tubing for air: 1 pc
Optional Accessories:
1. Atomizer
2. Built-in Thermal printer
3. Software
