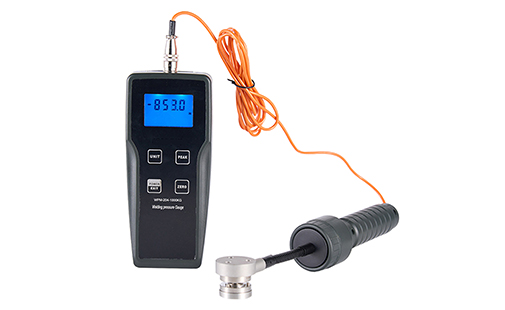

WPM-204 Welding Pressure Meter

Applications:

WPM-204  has the input end of a dynamometer (pressure) and a weight transducer (weight) strain gauge. It is used in the latest static and dynamic measurement systems, such as material test machines, printing machines, test benches and automatic equipment. Up to ≤±0.02 % measurement precision, can be used in the quality test system, for the first batch or the second batch of samples for testing, to proceed to a general calibration. The measurement system consists of A modular component, specifically a long-term stable modular component, a thermal drift transmission frequency feeder for a reduced system, and a 16-bit A/D converter guaranteeing 65.000 internal division.

Features:

1. High accuracy and high resolution.

2. Digital display with no guessing or errors.

3. With 3 measurement unit for selection and conversion, N, kg, lb.

4. With peak value hold function.

5. With 10 minutes auto power off and manual power off.

6. Either alkaline battery Power supply or 5V DC power.

Specifications:

1. Force Range:

    1) WPM-204-10K: ±10kgf; ±98N; ±22Lbf

    2) WPM-204-100KG: ±100kgf; ±980N; ±220Lbf

    3) WPM-204-1000KG: ±1000kgf; ±9800N; ±2200Lbf

2. Resolution:

    1) WPM-204-10K: 0.001kgf; 0.001N; 0.001Lbf

    2) WPM-204-100KG: 0.001kgf; 0.01N; 0.01Lbf

    3) WPM-204-1000KG: 0.01kgf; 0.1N; 0.1Lbf

3. Accuracy: ±1%FS

4. Unit: kgf, N, Lbf

5. Measurement State: Peak Value Measurement, Real Time Measurement

6. Display: LCD

7. Power Off: 10 Minutes Auto Power Off, Manual Power Off

8. Backlight: Blue Backlight

9. Safe Load: 150%FS (Buzzer Alarm Over 110%FS)

10. Power Supply: 2 x1.5 AA (UM-3) Battery or 6V DC Power Supply

11. Operating Conditins: Temperature: 0~40°C; Humidity: <80%

12. Surrounding: No Vibration Source or Corrosive Medium Around

13. Size: Host:175x80x36mm; Senor:268mmxφ44.6mm

14. Battery: 2pcs AA
