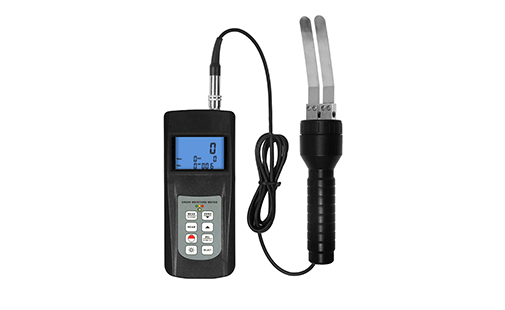

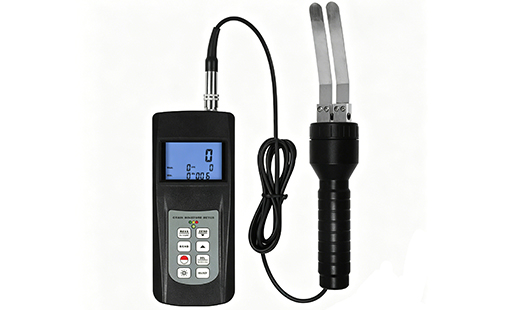

MC-7828PP Paper Moisture Meter

Order Code:

1. MC-7828PP: Standard Packing

2. MC-7828PP-1: USB + Software

3. MC-7828PP-2: Bluetooth + Software

Features:

1. With storage and statistical functions. Can store 240 groups of measurements.

2. Two presentations, digital display and color coded LED indication.

3. Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value.

4. Use USB data output to connect with PC.

5. Provide Bluetooth data output choice

Specifications:

1. Sensor Type: Contact Type

2. Range: 0~50% (Cd08), 0~18% (Cd10), 0~100% (Cd11), 0~40% (Cd12)

3. Accuracy: ±(0.5%n+1)

4. Resolution: 0.1

5. Display: LCD

6. LED Indicator:

   1) Green LED Represents a Safe,Air-dry State

   2) Yellow LED Represents a Borderline State

   3) Red LED Represents a Damp State

7. The Statistics Available: Last value / Mean value / Max. value / Min. value / Number of Readings

8. Memory: 240 groups

9. Operation Conditions: Temperature 0~50ºC; Humidity <90%RH

10. Power Supply: 4 x1.5V AAA Size (UM-4)Battery

11. Dimensions: Main Unit 150 x 65 x30mm; Sensor 265 x 44 x 44mm

12. Length of electrode: 77mm

13. Cross section size of electrode: 14x1mm

14. Gap between 2 electrodes: 4mm

15. Weight: 280g

Optional Accessories:

1. USB Data Cable with Software

2. Bluetooth Data Adapter with Software
